1. Why Do Electronic Products Require Airtightness Testing?

Electronic products typically contain precision circuits, micro-components, and highly integrated modules. Exposure to liquids (such as water), gases (like moisture, dust), particles, or oil mist may lead to short circuits, corrosion, electrical performance degradation, or even total device failure.

In particular, the following application scenarios demand specific levels of sealing protection:

  • Mobile phones and earbuds: Require IP67/IP68 ratings to ensure stable performance under water or in humid environments.
  • Outdoor electronic devices: Such as action cameras and field sensors need dustproof and waterproof capabilities.
  • Medical electronics: Require sterile sealing to avoid contamination.
  • New energy vehicle electronics: Must prevent moisture ingress into high-voltage systems to eliminate safety risks.

Therefore, airtightness testing before shipment is essential not only for quality control but also for reducing after-sales repair rates and customer complaints.

2. Basic Principles of Leak Testers

The working principles of airtightness testers include the following methods:

  1. Pressure Decay: Pressurizing or vacuuming a sealed chamber and observing pressure change to determine leakage.
  2. Mass Flow: Continuously supplying air and monitoring the leak rate using a flow sensor.
  3. Micro-Pressure Method: Used for very small or highly sensitive products such as earbuds or sensors.
  4. Water Immersion (Traditional): Submerging the product in water and observing bubbles, but this method has low precision and efficiency and is being phased out in modern manufacturing.

Among these, pressure decay and micro-pressure methods are most widely used in electronics for their high precision, non-destructive nature, and fast cycle times.

3. Key Parameters in Airtightness Testing of Electronics

The following parameters are critical when performing airtightness tests:

  • Test Pressure: Must be within the allowable design range to prevent product damage.
  • Allowable Leak Rate: Should be set based on real application needs—for instance, IP67 typically requires 0.1–0.3 cc/min.
  • Test Time: Includes inflation, stabilization, and measurement phases. It should be balanced to ensure both accuracy and production efficiency.
  • Fixture Design: Poor fixture sealing can impact test results. For small components, customized fixtures are necessary.

4. How Airtightness Testing Improves Product Reliability

Airtightness testing can effectively improve product quality and reliability through the following ways:

  • Ensures consistent sealing quality across all units, eliminating human error and ensuring batch stability.
  • Supports the product design validation phase, helping optimize sealing structures and material choices.
  • Rapidly screens out defective units, preventing faulty products from reaching customers.
  • Reduces after-sales costs and boosts customer satisfaction and brand reputation.

5. Case Study: Airtightness Testing for Bluetooth Earbuds

In the consumer electronics industry, Bluetooth earbuds require strict waterproof sealing—especially in scenarios like sports, outdoor use, and daily carrying. A well-known brand implemented a fully automated pressure decay leak tester in their earbud production line to efficiently inspect both left and right chambers of each unit.

Bluetooth Earbud Leak Testing Equipment Figure 1: Automated Airtightness Testing Equipment

The equipment uses customized fixtures to hold the earbud housing, applies short bursts of air pressure, and determines leak presence based on pressure decay. The test time is controlled within 3 seconds per unit. The system supports data uploading and integration with MES systems for full traceability.

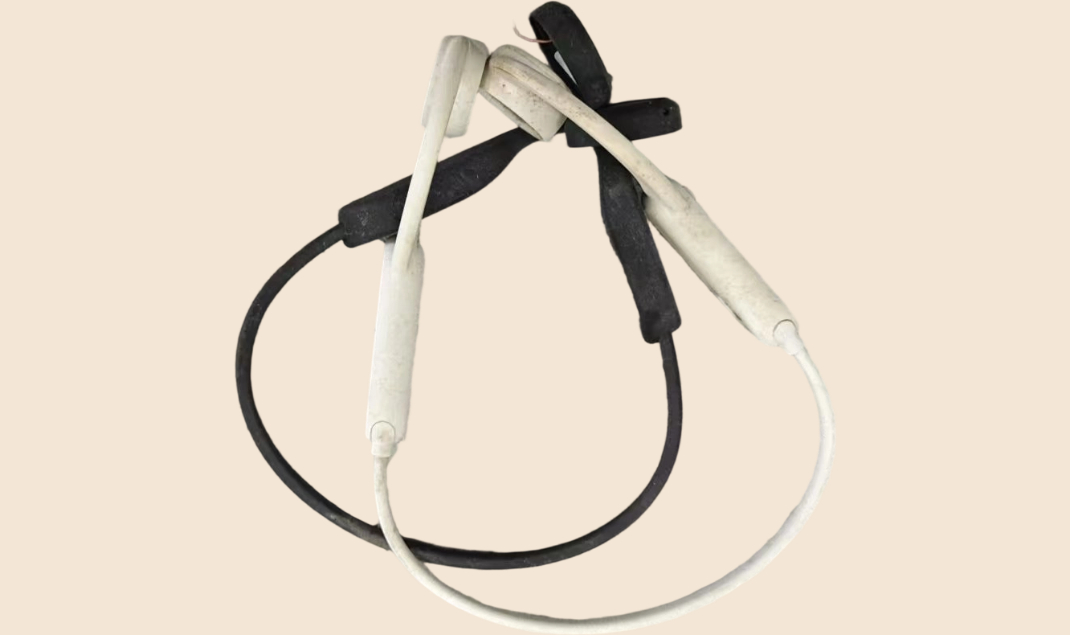

Bluetooth Earbud Shell Figure 2: Bluetooth Earbud Housing Under Test

After testing, the system automatically labels each unit as pass or fail and records critical data such as pressure, duration, and leak rate. All results are uploaded in real-time for later quality analysis and traceability.

Video: Automated Leak Testing for Bluetooth Earbuds

This solution has delivered significant results:

  • Waterproof defect rate reduced by over 90%
  • Customer complaints related to moisture failure dropped by over 80%
  • Successfully passed IPX4 waterproof certification
  • Significant improvement in overall reliability ratings and customer reviews on e-commerce platforms

This case clearly demonstrates that airtightness testing is not only a quality control method, but also a key strategy for improving user experience and reducing after-sales costs. As testing devices become more intelligent and data-driven, their role in the consumer electronics sector will continue to grow.

6. Future Trends: Intelligence and Digitalization

Future leak testing equipment will evolve in the following directions:

  • AI-Based Abnormal Pattern Recognition: Analyze test data using algorithms to improve error detection accuracy.
  • MES Integration: Automatically record test results for traceability and production management.
  • Multi-Channel/Parallel Testing: Significantly improve line throughput and adapt to high-volume production.
  • Micro-Leakage Detection: Meet the needs of wearable and compact electronic device testing.

Conclusion

For electronic products where performance and stability are core competitive advantages, airtightness testing is not merely a test method—it is a vital technical assurance for brand reputation and product reliability. As consumer expectations for waterproof and dustproof capabilities rise, airtightness testing will play an increasingly important role in the electronics manufacturing value chain.
