Waterproof Testing for Roller Shutter Door Motors: Reasons and Solutions Explained
Published on: June 24, 2025
In automated warehouses, industrial workshops, and underground parking lots, roller shutter doors serve as critical access barriers. Their core drive component—the motor—plays a key role in ensuring safe and stable operation. This article explores why waterproof testing for roller shutter door motors is essential and provides a practical solution using a waterproof testing instrument.
1. Why is Waterproof Testing Necessary?
1.1 Complex Environments Require High Sealing Performance
- Humid underground garages may cause condensation to seep in
- Outdoor installations are exposed to rain and storms
- Factory washdowns demand resistance to high-pressure water jets
1.2 Motor Water Ingress Leads to Serious Failures
| Issue | Consequence |
|---|---|
| Water inside housing | Rusty cores, bearing lock-up, motor failure |
| Damp wiring | Insulation breakdown, short circuit |
| Leaky terminal box | Signal interruption, door malfunction |
📌 Case Study: A well-known brand faced mass motor failures during the rainy season due to poor sealing of terminal boxes, with a return rate reaching 13% in a single month.
2. Limitations of Traditional Testing Methods
- Water immersion tests are inefficient and pose shock/corrosion risks
- Visual sealant checks are error-prone and miss micro-leaks
- Sample testing cannot ensure full inspection and may miss defects
3. Solution: Differential Pressure Waterproof Testing Instrument
3.1 Principle
The differential pressure method is a non-destructive sealing test. The waterproof testing instrument inflates the motor housing and compares it with a standard chamber, monitoring pressure variation to detect leakage.
3.2 Applicable Areas
- Motor casing and enclosure
- Terminal box and shaft seals
- Potting and injection points
3.3 Recommended Parameters for Waterproof Testing Instrument
| Item | Specification |
|---|---|
| Model | WF-LP200 Differential Pressure Waterproof Testing Instrument |
| Test Pressure | 30–80 kPa (depending on structure) |
| Leak Rate Standard | ≤ 0.3 Pa/s |
| Test Time | 6–12 seconds per unit |
| Communication Interface | RS485 / IO / PLC |
4. Waterproof Testing Instrument Workflow

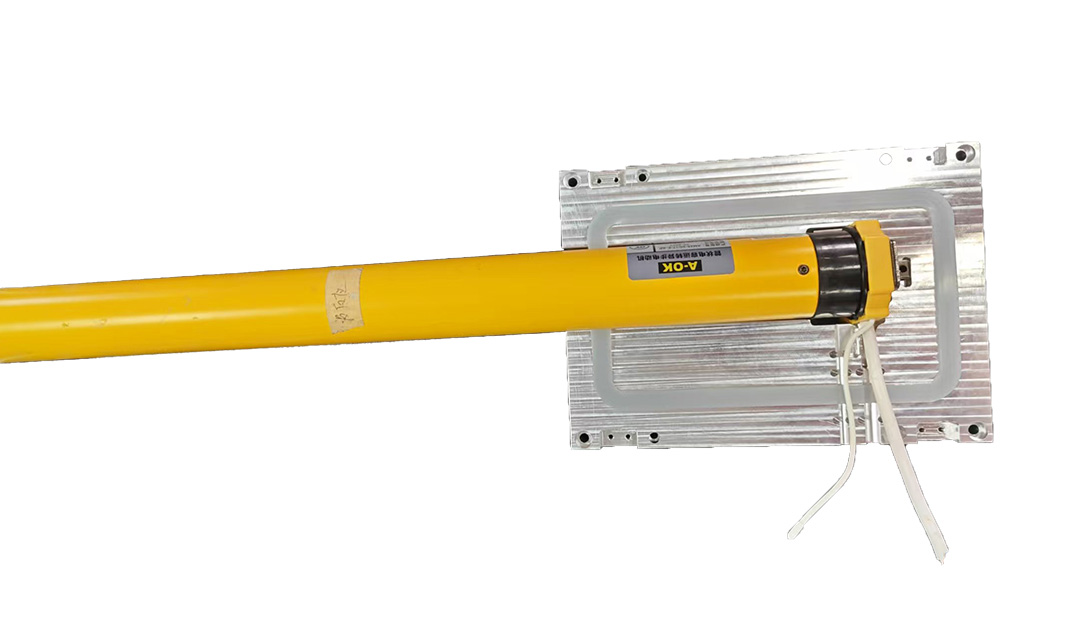

- Place the motor into a sealed fixture
- Connect the waterproof testing instrument to inject test air
- Proceed to pressure stabilization → differential pressure monitoring
- Output OK / NG result
- Link to production line sorting/tracing system
5. Benefits of Introducing a Waterproof Testing Instrument
- ✅ Ensures sealing consistency, eliminates manual error
- ✅ Meets IP65/IP67 protection grade test standards
- ✅ Reduces mass repair costs and customer complaints
- ✅ Enables full inspection traceability for premium quality assurance
